| ITEMS | R4M |
| Image Sensor | Sensor Type | 1/2.6'' CMOS |
| Display Resolution | 2K(2304x1536) |
| Frame Rate | 20fps（2K）/25fps（3MP）/25fps (1080P), downward adjustable | | | | |
| Min. Illumination | 0 Lux (With IR Illuminator) |
| Lens | Lens Type | f:4mm,F2.2 |
| Angle of View | Horizontal:89° Diagonal : 112° |
| Video | Image Compression | H.264 |
| Resolution | 2K(2304x1536) 20fps,3MP(1204x1440)25fps,1080P(1920x1080) 25fps,720P(1280 x 720), VGA(640 x 480), QVGA(320 x 240) |
| Stream | dual stream |
| Image adjustment | The hue, brightness, contrast, saturation, sharpness are adjustable |
| Flip image | flip and mirror |
| Intelligent Assistant | Support Alexa |
| Infrared mode | Automatic or manual |

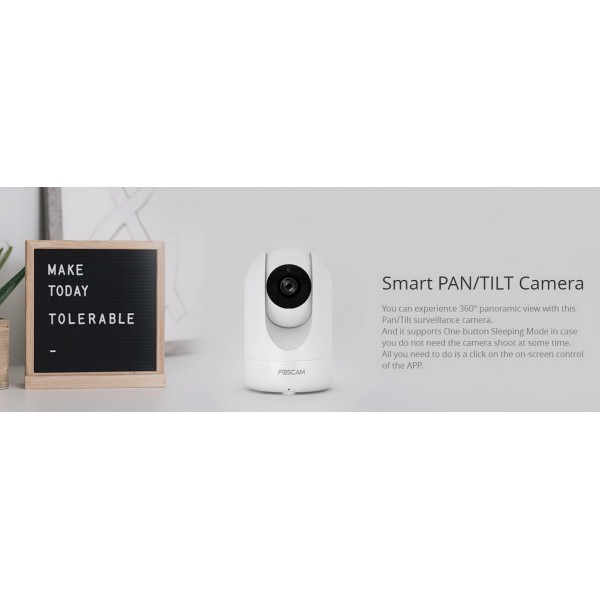

| manual Pan/Tilt Angle | Horizontal:350° & Vertical: 100° |
| Night visibility | 13pcs IR-LEDs, night vision range up to 10 metres |
| Audio | Input/Output | Supports Full Duplex Two-way Audio
Built-in Mic & Speaker |
| Audio Compression | PCM/G.726 |
| Network | Ethernet | One 10/100Mbps RJ45 port |
| Wireless Standard | 2.4G：IEEE802.11b/g/n
5G：IEEE802.11a/n/ac |
| Data Rate | 2.4GHz：
IEEE802.11b: 11Mbps(Max.);
IEEE802.11g: 54Mbps(Max.);
IEEE802.11n: 150Mbps(Max.).
5GHz：
IEEE802.11a: 54Mbps(Max.);
IEEE802.11n: 150Mbps(Max.);
IEEE802.11ac: 433Mbps(Max.). |
| Wireless Security | WPA, WPA2 |
| Wireless Setup | Supports EZLink&QR Code+Wave wireless setup |
| Network Protocol | IP、TCP、UDP、HTTP、HTTPS、SMTP、FTP、DHCP、UPnP、RTSP、ONVIF |
| Remote Access | P2P, DDNS |
| System Requirements | Operating System | Microsoft Windows XP,7,8,10;Mac OS;iOS、Android |
| Browser | Microsoft IE9 and above version,Edge;
Mozilla Firefox;
Google Chrome;
Apple Safari. |
| Other Features | Motion Detection | Alarm via E-Mail, upload alarm snapshot to FTP and mobile app |
| Human Detection | √ |
| Sound Detection | Alarm via E-Mail, upload alarm snapshot to FTP and mobile app |
| WDR | Improve image clarity in complex scenario |
| Zoom | 6X digital zoom function |
| User Accounts | Three levels user role |
| Firewall | Supports IP Filtering |
| Storage | 128G Micro SD card, local and FTP storage,Foscam cloud storage |
| Power | Power Supply | DC 5V/2A |
| Power Consumption | ＜6W |
| Physical | Color | Black/White |
| Dimension(mm) | 74(L)×74(W)×119(H) |
| Net Weight | 290g |
| Environment | Operating Temperature | -10°C ~ 40° (14°F ~ 104°F) |
| Operating Humidity | 20% ~ 85% non-condensing |
| Storage Temperature | -20°C ~ 60° (-4°F ~ 140°F) |
| Storage Humidity | 0% ~ 90% non-condensing |
| Certification | CE, FCC, RoHS,WEEE |
| Warranty | Europe：Limited 2-year warranty |
